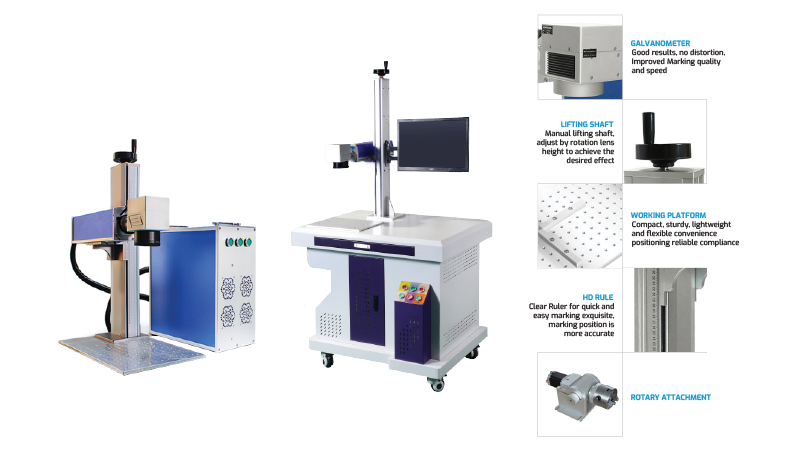

Fibre Metal Marking Machine | Perfect Global Machines

Non-contact processing, no damage to the workpiece, no tool wear, marking quality is better
High speed and high efficiency, suitable for marking and engraving on most of non-metal materials
Non-removable permanent marking, unlike inkjet printing, finish is better
Use import RF Laser, equipped with good beam performance
Long service life and stable working, can work 24 hours continuously

Model	PGM 20W / 30W / 50W
Laser Type	Sealed Co₂ Glass Laser Tube
Laser Power	10W / 20W / 30W / 50W
Working Accuracy	0.001 mm
Working Area	110 x 110 mm / 200 x 200 mm / 300 x 300 mm
Marking Speed	≤ 5 mm
Laser Wavelength	10.64 μm
Response Time	0.5 msec
Marking Depth	≤ 5 mm
Repetition Precision	± 0.01 mm
Cooling Mode	Air Cooling or Water Cooling
Supported Formats	BMP, JPG, TGA, PNG, GIF, TIF, AI, DXF, DST, PLT etc.
Power Source	AC 220 V ±10%, 50/60 Hz
Working Temperature	0 - 40° C
Working Humidity	5% - 85% (Non Condensation)
Working Environment	Clean & Free of Dust
Gross Power	≤ 1250 W
Safety Protection Glass	IP54
Laser Generator Safety Class	IV
