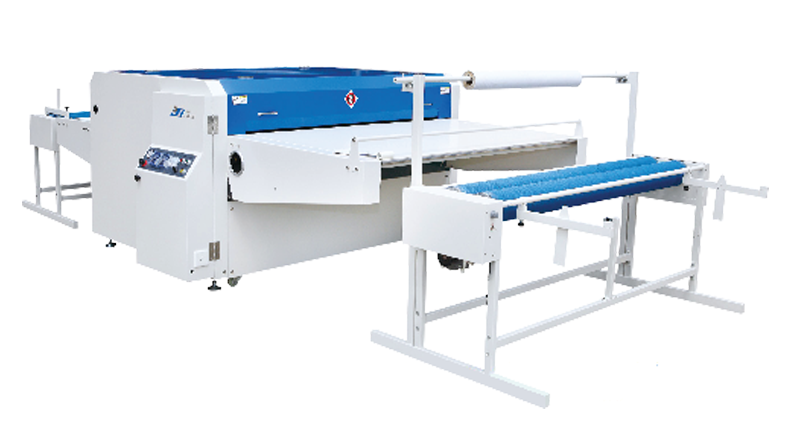

Fully Automatic Roll Form Curing & Fusing Machine - PGM2000 / PGM1600 / PGM1000
Features
- Heating area composed by 4 separately heating units, each heating units could be controlled temperature independently
- Heating area is 2.0m, heating more evenly, keeps material fusing continuously
- Using 200 mm diameter pressure roller, improved fusing quality
- Teflon belt using "O" type surround, avoid material stick to drive roller
- Automatic belt tracking system
- Standard size and also special optional big size as customer wants available this machine
Technical Parameters
| Model |
PGM 2000 |
PGM 1600 |
PGM 1000 |
| Power |
48 kW |
34 kW |
15 kW |
| Fusing Width |
2000 mm |
1600 mm |
1000 mm |
| Max. Pressure |
5.0 kgF/Cm |
5.0 kgF/Cm |
5.0 kgF/Cm |
| Max. Temperature |
200°C |
200°C |
200°C |
| Dimensions (L x W x H) |
4100 x 2630 x 1400 |
5565 x 2170 x 1310 |
3500 x 1540 x 1230 |
| Weight |
2000 Kgs |
1500 Kgs |
650 Kgs |
